Refrigerated Air Dryer Kits

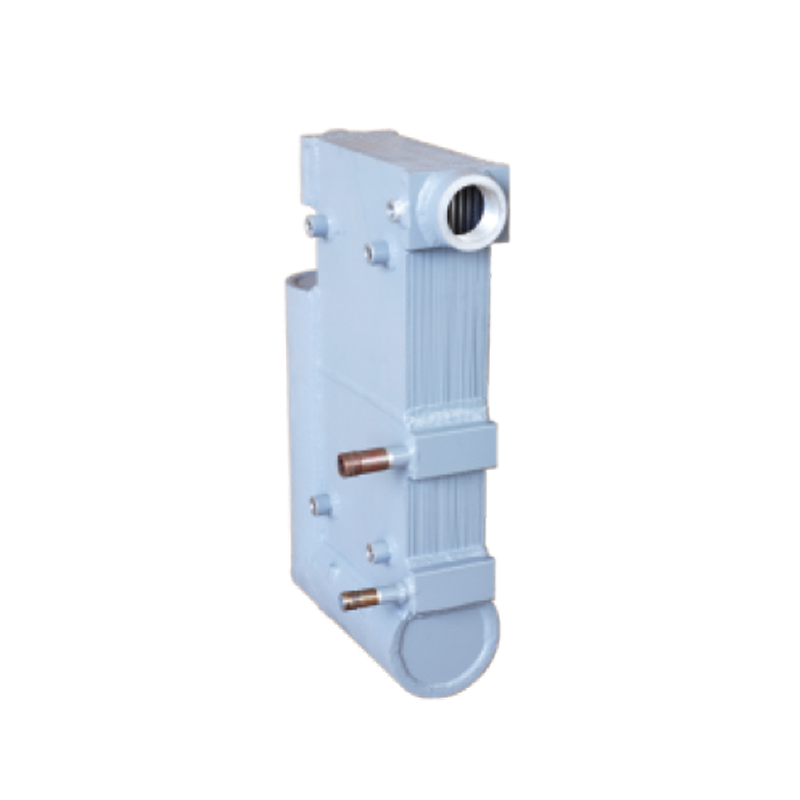

Heat Exchanger
Aluminium Heat Exchanger is the combination of Pre cooler, Evaporator and built in Stainless Steel demister moisture separator. Pre cooler (air to air heat exchanger) and evaporator (air to refrigerant heat exchanger) aress flow type with more cross sectional area for flow to make it non-clogging. Heat Exchanger is designed to have better turbulence & maximized heat transfer rate. Lesser difference in temperature between Inlet Air & Outlet Air ensures better effectiveness.

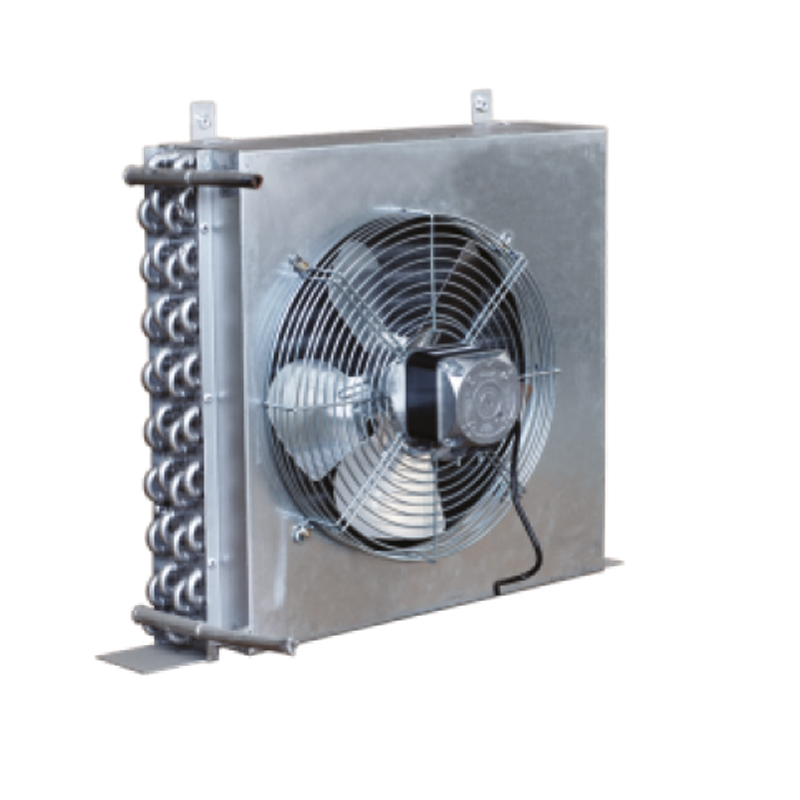

Condenser
Copper tube with Aluminium fins designed to work of higher ambient up-to 50 deg C. Fins are easy to clean.
Auto Drain Valve
300 series utillum time) hersad draie vele. The condensate is collected in a chamber is segregated from the air flow. The fun selve starts aperating automatically after 4/16 móns and spens 4/8 seres for dreining, depending spuse the capacity of the dryer

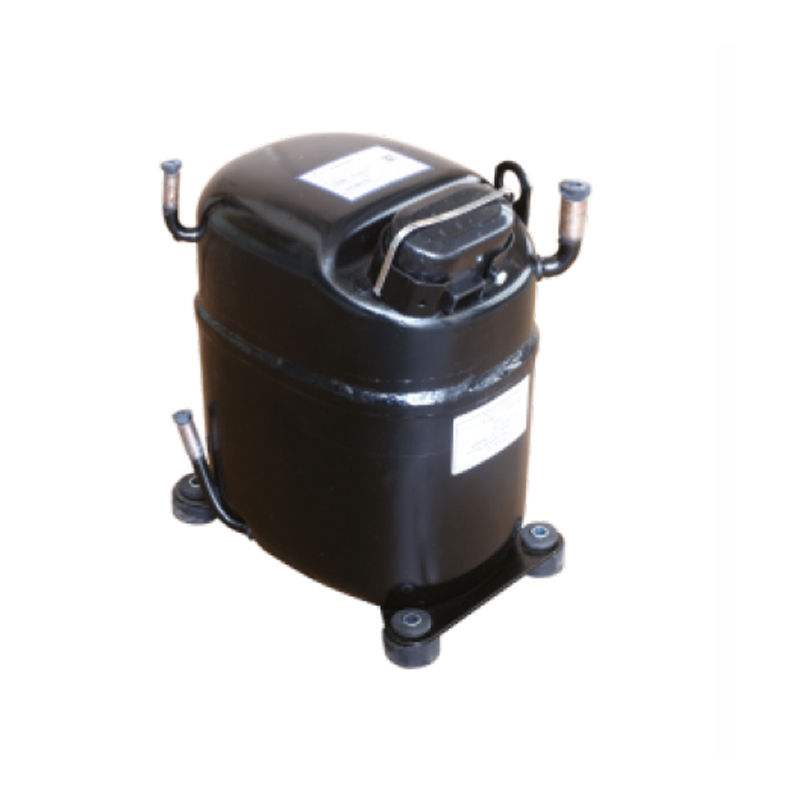

Compressor
Extremely high reliability due to reduced vibration levels and fewer moving parts. Low nor energy, space weight saving design. Can be used in higher ambient temperature.

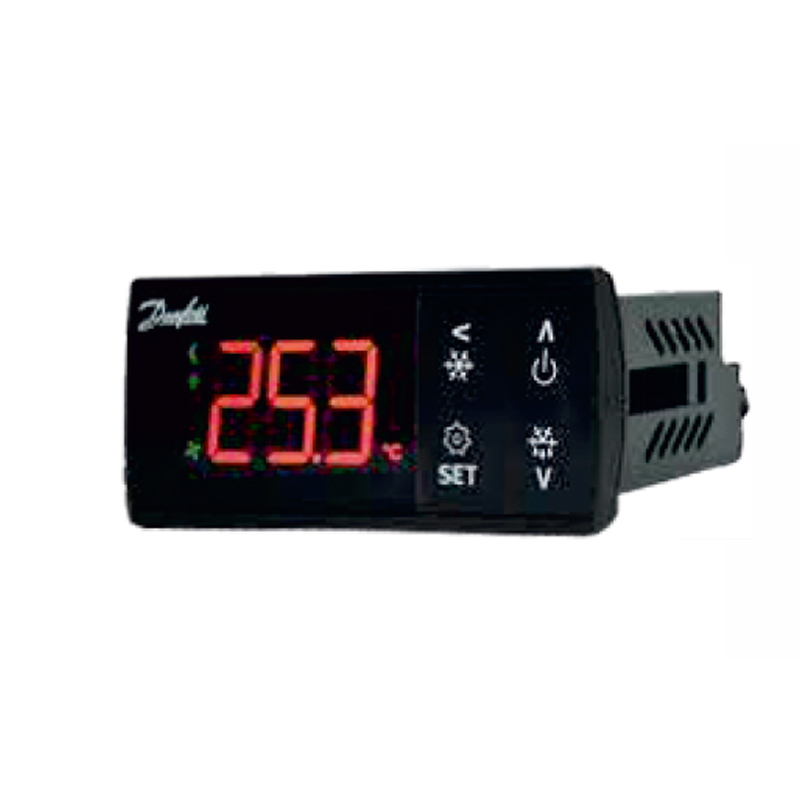

Temperature Controller
- Pressure dew point temperature
- Status of auto drain valve
- Status of Hot Gos by pass valve Controls as
- Pressure dew point Lastrol
- Auto drain Control
- Fan motor Contral

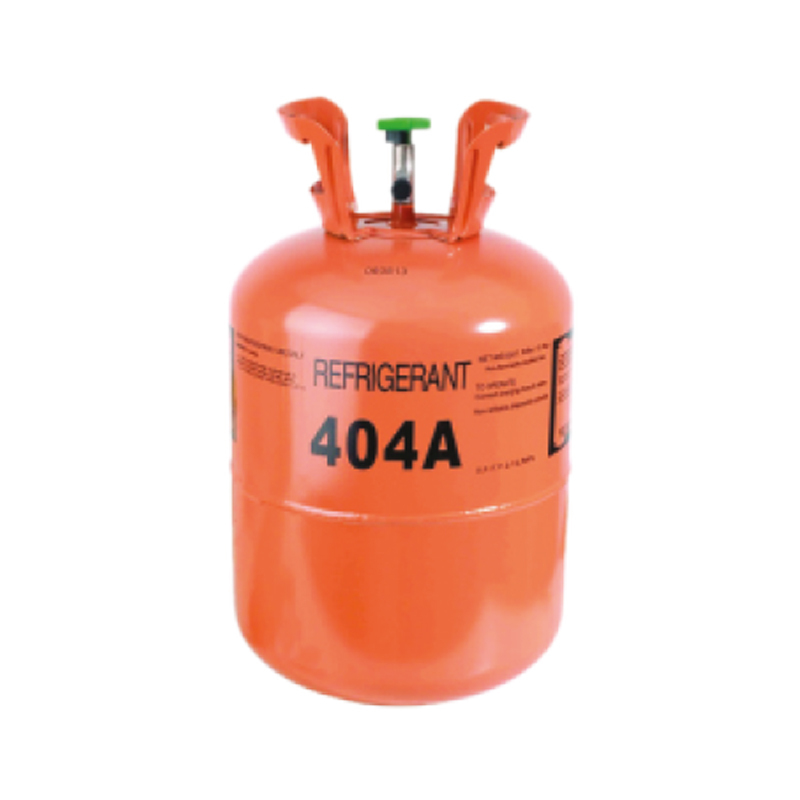

Refrigerant
- Environmentally friendly refrigerant all models
- R-134A,R-404A, R-407C.
- No CFC’s or HCFC’s, EPA/SNAP complaint.
- Zero ozone depletion potential

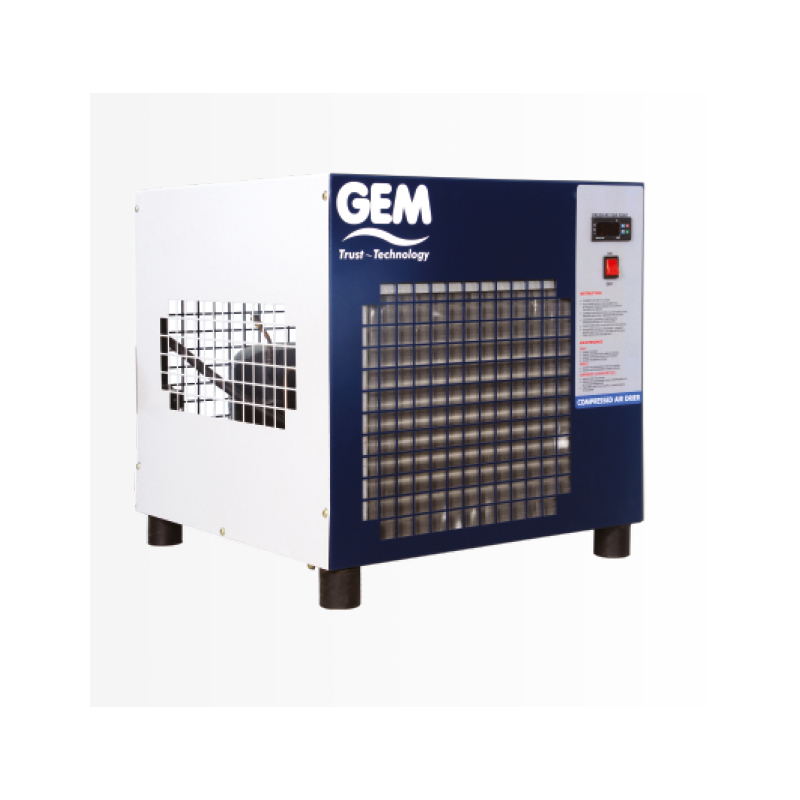

3GW
Wall Mounting
| Product Range | 20-60cfm |
| Working Pressure Range | 7-16Kg/cm2 (g) |
| Max. Inlet Temperature | 45°C |
| Outlet Temperature Range | 30-35°C |
| Pressure Dew Point at Outlet | 3-7°C |

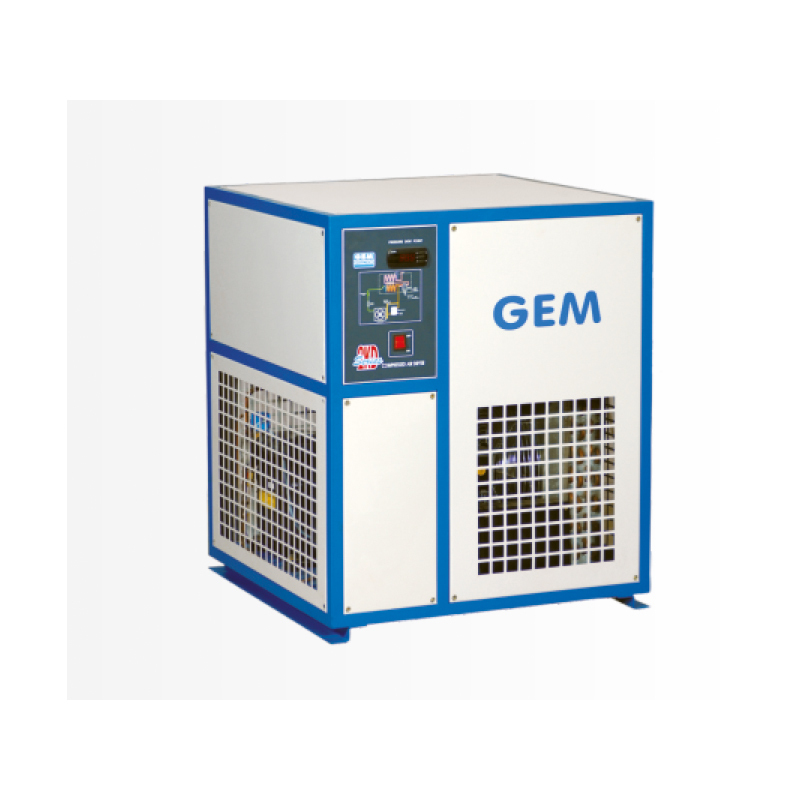

2KD
General Engineering
| Product Range | 20-2500 cfm (Air Cooled) |
| Product Range | 750-2500 cfm (Water Cooled) |
| Working Pressure Range | 7-16Kg/cm2(g) |
| Max.Inlet Temperature | 45°C |
| Outlet Temperature Range | 30-35 C |
| Pressure Dew Point at Outlet | 2-4°C |
2KD 7
High Pressure
| Product Range | 40-1250 cfm |
| Working Pressure Range | 40-42 Bar |
| Max. Inlet Temperature | 45°C |
| Outlet Temperature Range | 30-35 C |
| Pressure Dew Point at Outlet | 2-4°C |

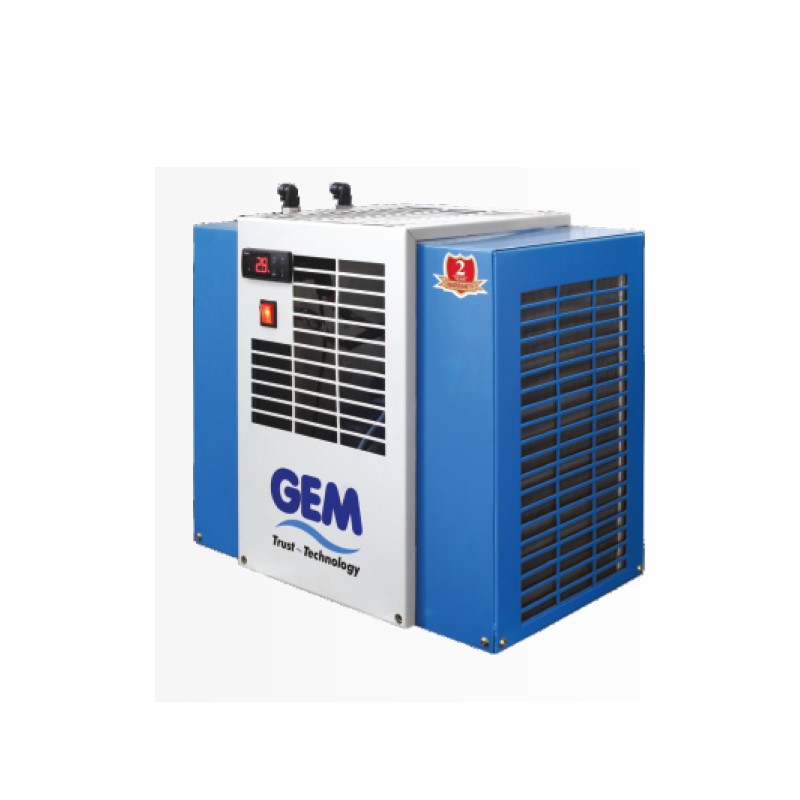

3GX
General Purpose
| Product Range | 150-2000cfm |
| Working Pressure Range | 7-16Kg/cm2(g) |
| Air Flow Related To | 20°C, 1Bar |
| Max. Inlet Temperature | 45°C |
| Outlet Temperature Range | 30-35°C |
| Pressure Dew Point at Outlet | 2-4°C |
3GD
Logic Controller
| Product Range | 150-2000cfm |
| Working Pressure Range | 7-16Kg/cm2(g) |
| Air Flow Related To | 20°C, 1Bar |
| Max. Inlet Temperature | 45°C |
| Outlet Temperature Range | 30-35°C |
| Pressure Dew Point at Outlet | 2-4°C |
3GE
Energy Saving - Digital
| Product Range | 750-2000cfm |
| Working Pressure Range | 7-16Kg/cm2(g) |
| Air Flow Related To | 20°C, 1Bar |
| Max. Inlet Temperature | 45°C |
| Outlet Temperature Range | 30-35°C |
| Pressure Dew Point at Outlet | 2-4°C |
3GZ
Dual Frequency
| Product Range | 20-1000cfm (50 Hz) & 22-1120cfm (60 Hz) |
| Elctrical | Dual Frequenncy (50 & 60 Hz) |
| Working Pressure Range | 7-16Kg/cm2(g) |
| Air Flow Related To | 20°C, 1Bar |
| Max. Inlet Temperature | 45°C |
| Outlet Temperature Range | 30-35°C |
| Pressure Dew Point at Outlet | 2-4°C |
